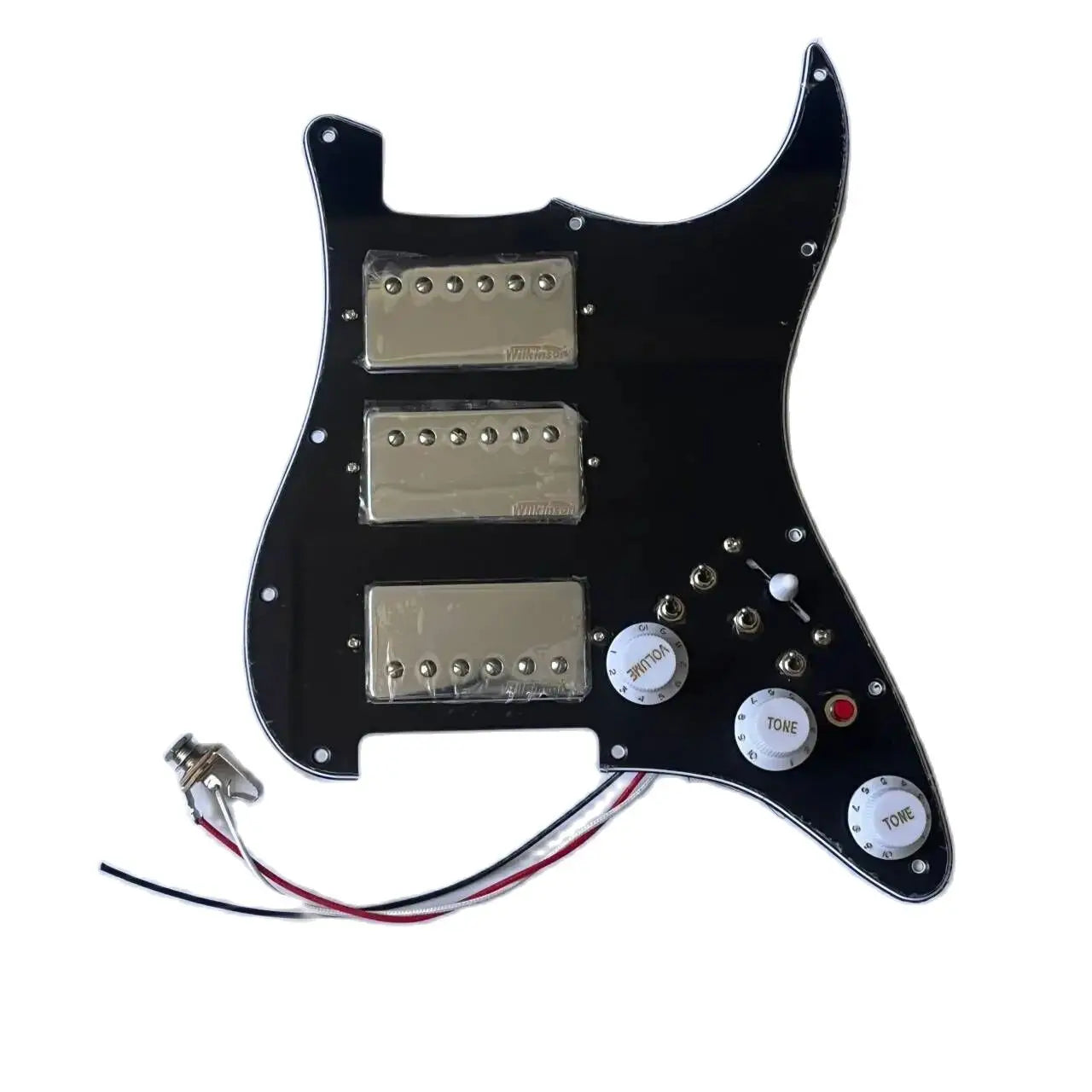

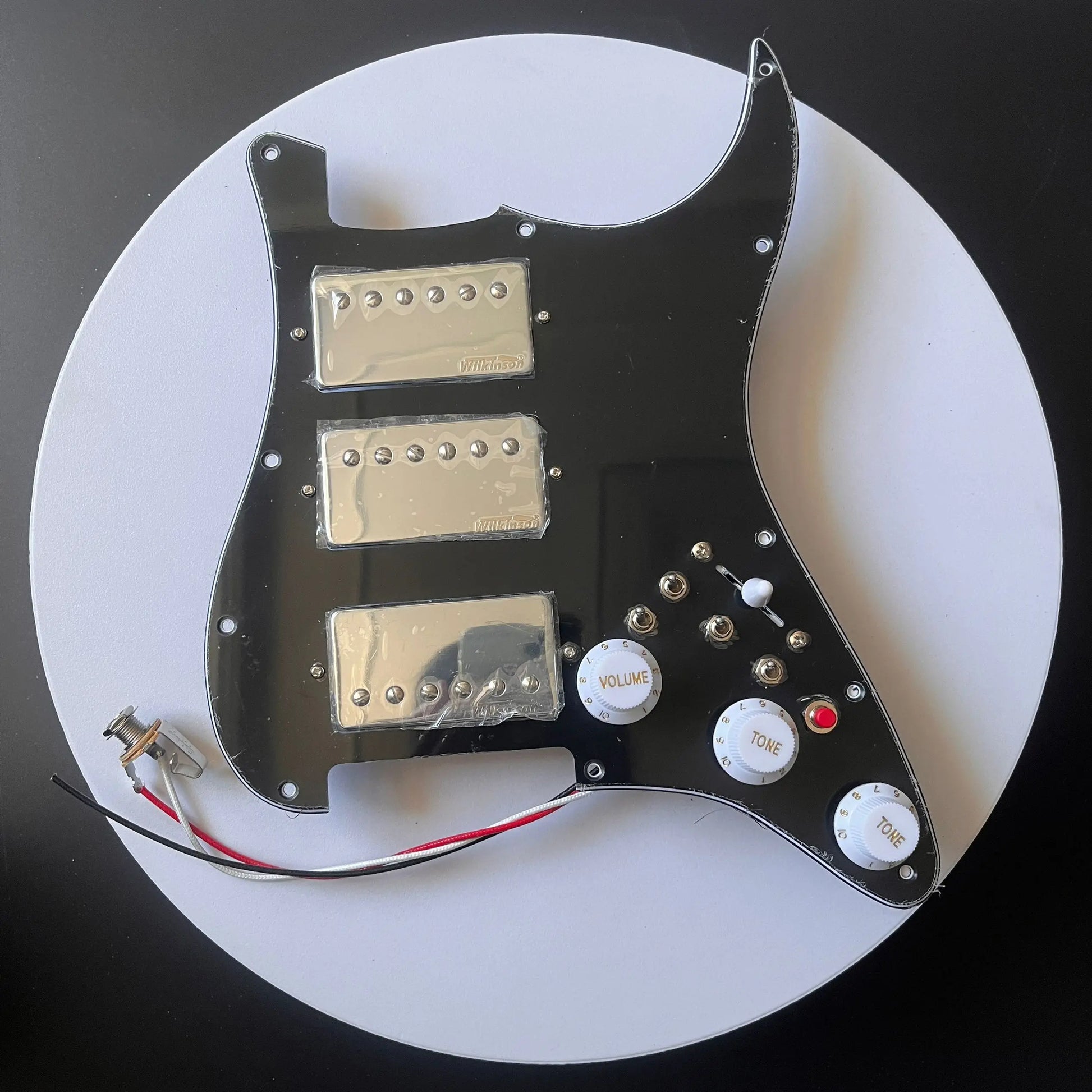

Black HHH Guitar Stratocaster Strat Style Loaded Prewired Pickguard, Multi Switches Wiring

Specifications:
Material: Metal, plastic, copper, magnets
Resistance: N/M/B: 7.5K/ 6.3Kohm/ 13.6Kohm
Size: 285x220x60MM/11.22x8.7x2.4Inch ( L x W x T)
Weight: 700g/1.54lb

1X 3-ply Guitar Pickguard

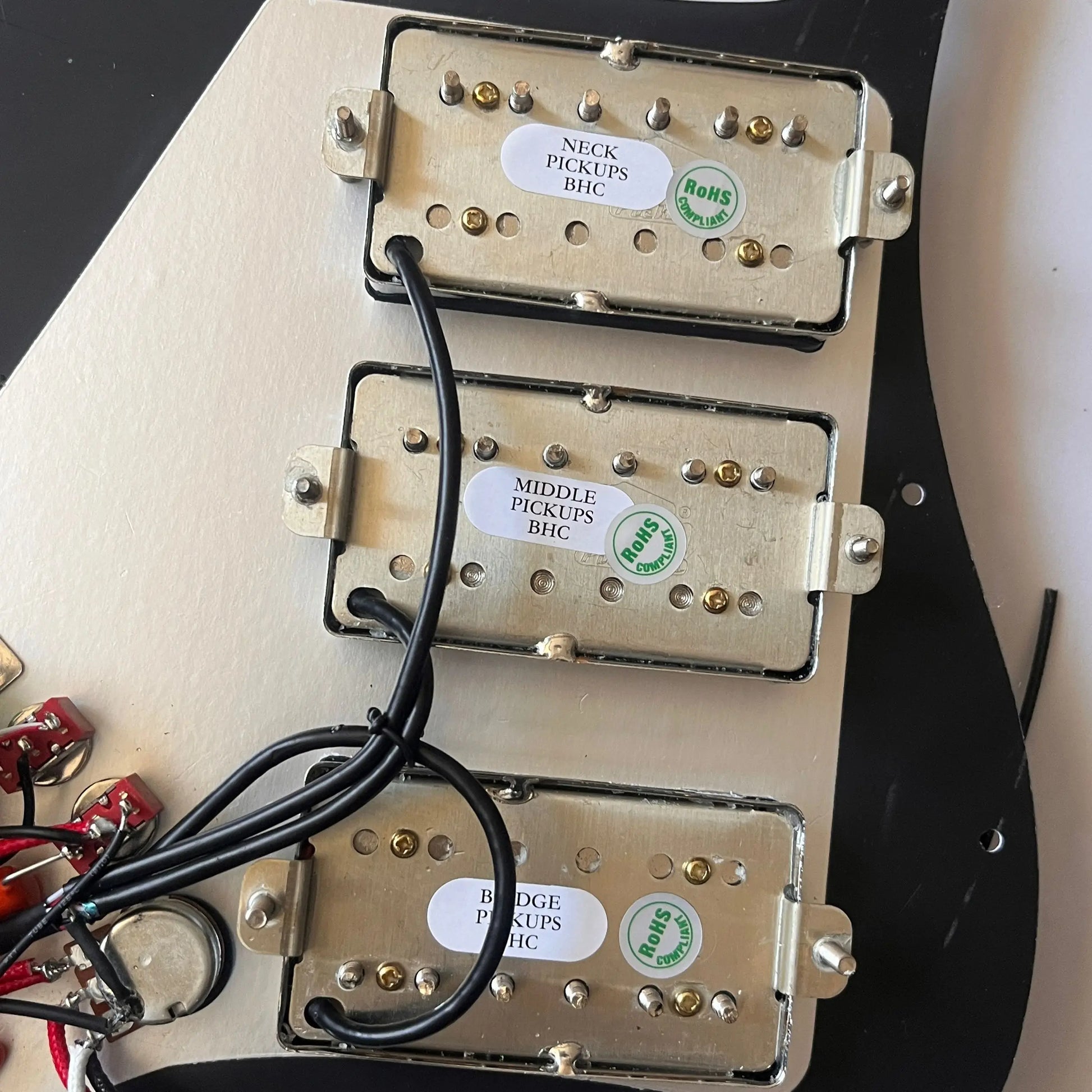

3X humbucker pickups
1X 5-way switch
1X enhanced switch
3X potentiometer 1V2T
4X cut Toggle
1X 473J 400V Caps (Made in USA)
1X 473J 100V Caps (Made in USA)
1X Output Jack
11xScrews

Importation Tips:
The four single-cut toggle and one inhanced switch bring new functions, as follows:

1. When the 5-speed switch is placed in the first position, the neck pickups work. After pressing the enhanced switch at this time, neck + bridge pickups will work at the same time.

2. When the 5- speed switch is in the second position, the neck + middle pickups work together, pressing the enhanced function switch at this time, neck + middle + bridge pickups will work at the same time.

3. Each pickup has an independent single-cut (Push-Pull) switch.
